PRODUCT NAME: GRAPHITE MATERIALS – BLOCKS AND RODS (0.043MM)

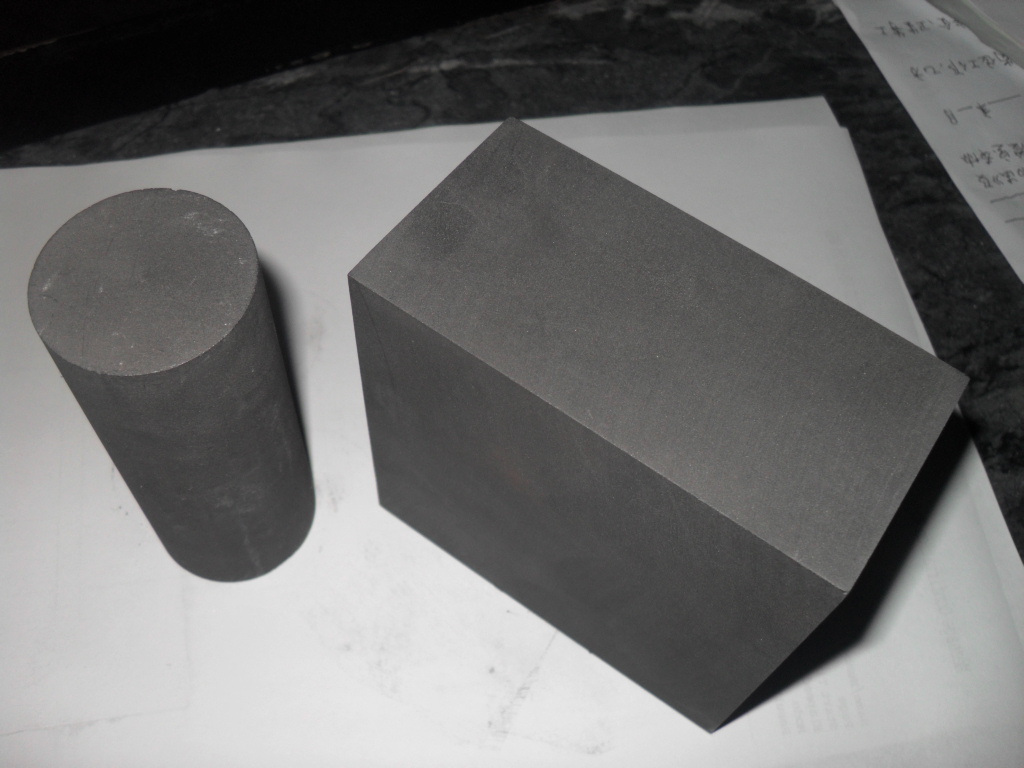

NO. 1: GRAPHITE BLOCKS/RODS (0.043MM)

• GRADE: FG-A, FG-B, FG-C, FG-D, FG-E, FG-F, FG-G, FG-H, FG-I and FG-J (THE DIFFERENT BETWEEN EACH GRADE IS MAINLY ABOUT THE DENSITY: 1.62,1.65, 1.68, 1.70, 1.75, 1.78, 1.80, 1.82, 1.86，1.90).
• We have 10 grades, we only mention two grades for your reference as folows:
  • Grade FG-F:
    • Grain size: 325 mesh (0.043mm)
    • Density: 1.78 g/cm³, minimum
    • Resistivity: 10.0 uom
    • Flexural strength: 33 MPa
    • Compressive strength: 56 MPa
    • Shore: 44
    • Ash: 0.08% maximum
  • Grade FG-I:
    • Grain size: 325 mesh ( 0.043mm)
    • Density: 1.86 g/cm3, minimum
    • Resistivity: 8 uom
    • Flexural strength: 39MPa
    • Compressive strength: 64MPa
    • Shore: 46
    • Ash: 0.08% maximum
    •
• Available sizes:

RECTANGULAR: 205 x 205 x 80, 315 x 210 x 100, 315 x 210 x 150, 320 x 255 x 150, 335 x 270 x 150, 375 x 300x 160, 435 x 140 x 140, 445 x 125 x 125, 385 x 280 x 200, 435 x 255 x 158, 40 x 215 x 140, 495 x 300 x 150, 495 x 305 x 180, 645x 145 x 210, 665 x 210 x 200, 555 x 250 x 140, 555x 360 x 200, 855 x 230 x 320, 915 x 210 x 320,

ROUND (D-Diameter): D110 x 255, D135 x 255, D190 x 305, D219 x 305, D245 X 410, D260 x 310, D305 x 260, D325x 250, D345x 250, D355 x 310, D405 x 360, D465 x 400, D505 x 400mm

NOTE:1). NOT EACH GRADE MATCH ALL THE SIZES. PLEASE TELL US OF YOUR REQUEST, THEN WE WILL CHOOSE THE SIMILAR GRADE AND SIZES FOR YOU.

NO. 2: ISOTROPIC GRAPHITE BLOCKS.

• Density: 1.82 g/cm3, minimum
• Resistivity: 9.0 uom
• Shore: 46
• Flexural strength: 40 MPa
• Compressive strength: 62 MPa
• Ash: 0.08% maximum

VAILABLE SIZES: DIA540X410MM, DIA520X610MM, DIA635X640MM.
