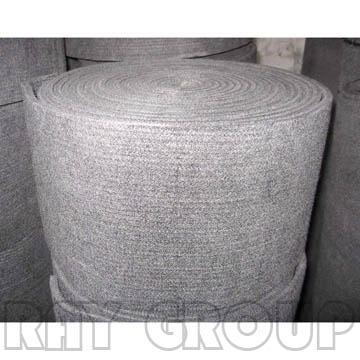

(SOFT) CARBON FIBRE FELT.
1. MAIN APPLICATION: IT IS USED AS THERMAL INSULATION MATERIAL; AS REINFORCED MATERIAL TO PRODUCE CARBON-CARBON COMPOSITE MATERIAL.
2. CHARACTERISTICS: PAN CARBON FIBRE FELT FLATBED ARE PRODUCED FROM PAN FELT BY STABLIZATION AND CARBONIZATION. BECAUSE 90% ARE SPACE IN THE FELT, SO THE EFFECT OF THERMAL INSULATION FUNCTION IS VERY GOOD UNDER VACUUM OR INERT GAS. IT HAS A STABLE FUNCTION UNDER HIGH TEMPERATURE. BECAUSE IT HAS VERY SMALL DENSITY, SMALL SPECIFIC HEAT VOLUME, SOFT NATURE, GOOD THEMAL INSULATION FUNCTION, EASY OPERATION, IT IS VERY FITFUL FOR HIGH TEMPERATURE VACUUM FURNACE UNDER INTERMITTENCE OPERATION. IT CAN SAVE ENERGY SOURCES. AS FLATBED FELT, IT CAN BE COMPOUNDED WITH CARBON INTO CARBON-CARBON COMPOSITE MATERIAL.
3. PROPERTIES: DENSITY: 0.08 -0.17 g/cm3, TENSILE STRENGTH: 0.10 – 0.30 Mpa, C: 98% MIN, THERMAL CONDUCTIVITY: 0.07-0.16 W/m.C. SPECIFIC HEAT VOLUME: 1.52-1.73 kkJ/kkG.C, RESISTIVITY: HORIZONTAL-8.2X10 3 – 11.1 X 10 3 umm2. ASH: 1.5% MAX.
4. SIZE: LENGTH: 3000 – 20000MM. WIDTH: 1000-1200MM, THICkkNESS: 5-30MM.
5. WORkkING TEMPERATURE UNDER VACUUM OR INERT GAS: 1000 – 1500 DEG, 1500-1800 DEG, 1800-3200 DEG.
