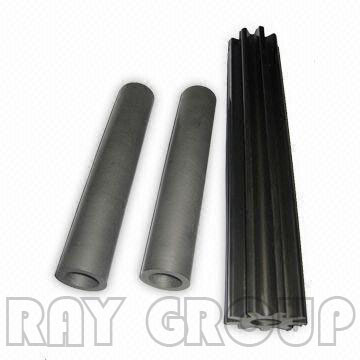

IMPERMEABLE GRAPHITE TUBES.

IT IS USED FOR PRODUCING TUBE & SHELL TYPE OF GRAPHITE HEAT EXCHANGER.

THE DIAMETER IS USUALLY 37/25MM, 32/22MM, 50/36MM. THE LENGTH IS USUALLY 2000MM, 3000MM, 4000MM, 5000MM.

TENSILE STRENGTH: 9.5MPA

BENDING STRENGTH: 12.5MPA

CRUSHING STRENGTH: 20.0MPA

PHYSICAL PRESSURE: 1.0 MPA, NO CRACKKS

THERMAL CONDUCTIVITY: 41.0 W/M.KK

FITFUL FOR SOLUTION: SULPHURIC ACID, HF ACID…
