Compak-Lock™ 1.75mm (.069") Pitch Wire-to-Board Connectors, Dual-Row, Side-Lock
Molex's new 1.75mm (.069") pitch Compak-Lock wire-to-board connectors include a unique dual positive side lock design that provides space savings and secure mating retention
Compak-Lock is finding use in applications such as Pachinko gaming machines, where secure mating and high-density packaging are key. Features include a fully-shrouded design to provide protection to pins during mating, and a box crimp terminal design that provides low insertion/extraction forces. The unique inner side-locks are user-friendly as well as space saving.

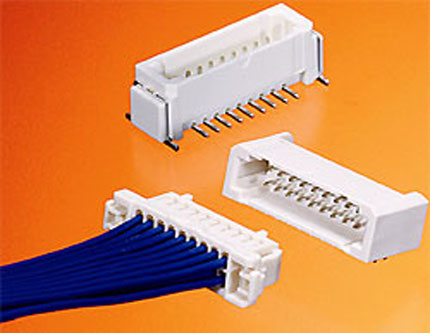

The system includes vertical and right angle headers in SMT and through-hole styles in 12, 14 and 18 circuits.
|
| Selection Matrix |
 |
| Features and Benefits |
| Positive inner side locks |
Space savings and secure mating retention |
| 1.75mm (.069") pitch |
Smallest compact design that can accept 24AWG and 2.0A |
| Fully shrouded box design |
Robust protection to pins |
| Header/housing polarization notches |
Prevent mismating |
| Box crimp terminal design |
Mating protection and low insertion/extraction forces |
| Applications |
Pachinko/slot machines
Vending machines
Datacommunication equipment
Heating/ventilation equipment
Any application requiring secure mating and space savings |
|
