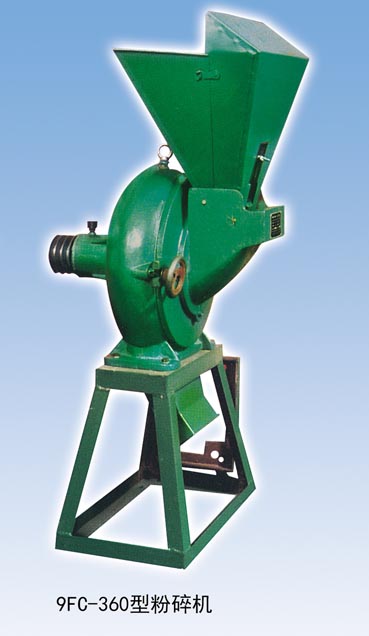

9FC-360型粉碎机



详细信息

本产品主要适应小型化工厂、饲料厂、大型个体养殖户、个体加工户的使用。本产品具有产量高，用电少、工作平稳、安全可靠、装卸方便等优点。本产品配上自吸器、风机、卸料器后，更加省工省力，从节能、耐用、高效等指标上都优于FFC-45A型粉碎机。
Model 9FC-360 disk mill is also an economic and efficient mill. It is popular in small chemical industry , fodder factory , farmer etc . It is excellent quality in crushing, economic and easy to be installed and operated. It is installed the automatic feeding , the air blower and the unloading equipment , crushed material easily, it is better than model FFC-45A disk mill.

主要技术参数（Principal Requirement to Technique）

机用动力 Motor 7.5-11KW 加工小麦筛孔1.5mm Crush wheat sieve size 1100kg 机器重量 Weight 168kg 加工玉米筛孔1.2mm Crush corn sieve size 950kg 主轴转速 Rotational speed of main shaft 4200r/min 加工高粱筛孔0.6mm Crush sorghum sieve size 480kg 转子盘旋转直径 Outer diameter of the rotator 360mm 加工大豆筛孔0.6mm Crush soyabean sieve size 320kg T型长扁齿 Long oblate gear T 5件(PCS) 加工饲料筛孔2.5mmCrush fodder sieve size 2000kg T型短扁齿 Short oblate gear T 5件(PCS) 加工稻壳筛孔1.8mm Crush rice husk sieve size　 550kg
